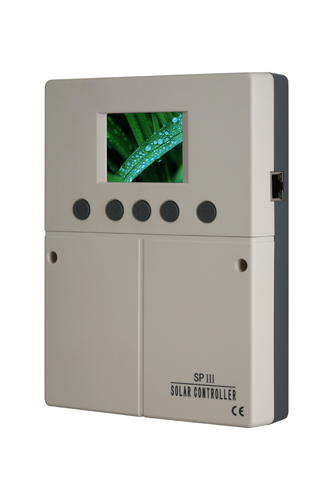

Controller for Solar Water Heater Model FSP-SP III
|
Item Number: FSP-SP III
|
Major functions:
- Display clock and week
- Temperature difference circulation
- Storage tank overheating protection
- Storage tank emergency cut-off
- Frost protection of collector and pipeline
- Adjustable of three time periods on Auxiliary heating
- Holiday function
- Anti-bacteria function
- Connect directly with the computer, switch or router to a home network access
- Web-based data configuration, heat calculating, look view history data, etc
- TOUCH SCREEN
Technical Specifications:
- Dimension: 186×140×41mm
- Input voltage: 100V~120V AC
- Power: ≤5W
- Accuracy of temperature measuring: ±1℃
- Range of temperature measuring: PT1000:0~199℃ NTC 10K: 0~99℃
- Input signals:
- 2 x PT1000 sensor temperature probe ≤500℃, silicon cable ≤280℃;
- 4 x NTC10K sensor temperature probe≤135℃, PVC cable ≤105℃
- 2 x NTC10K,
- 1 x Flow sensor
- Output signals:
- 1x Auxiliary heating output (Max. load current: 12A)
- 4 x Relay output (Max. load current: 3A)
- 1 x Adjustable output (Max. load current: 1.5A)
- TFT display
- Communication port: 1 x RJ45
- Range of environment temperature: -10~50℃
-
Water protection grade: IP40
Sensors included:
- 2 x PT1000 sensor temperature probe ≤500℃, silicon cable ≤280℃;
- 4 x NTC10K sensor temperature probe≤135℃, PVC cable ≤105℃
- 2 x NTC10K,
- 1 x Flow sensor
For user manual, please click on hyperlink for solar water heating controller model FSP-SPIII.
|
|
|
|
