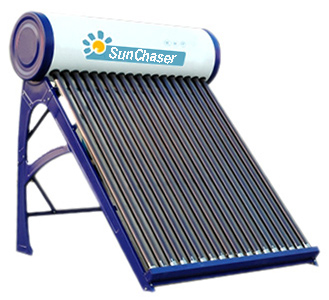

SunChaser Pressurized 24 Tube Integrated Solar Water Heater w/ 60 G Tank

<< Previous in Integrated Solar Water Heaters Next in Integrated Solar Water Heaters >>

MSRP: $1,295.00
Price: Close Out Sale! Add to Cart to View Price!
Out of stock
Item Number: FSS024B

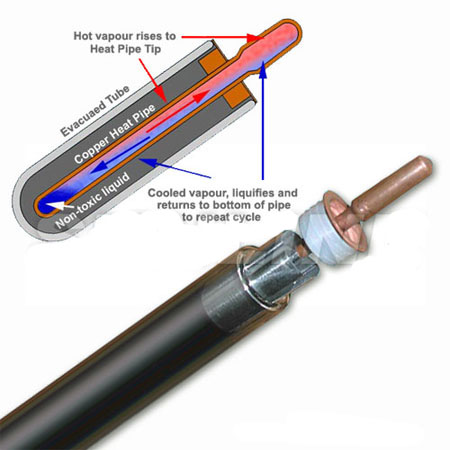

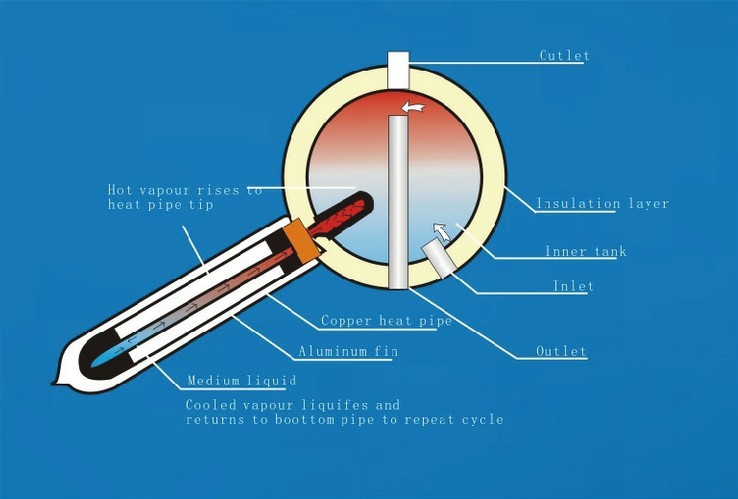

This is a passive pressurized system that works in both warm and cold climates. The system uses heat pipes to heat water inside tank without water in the vacuum tubes. Since each tube has heat pipe and works individually, the system will still work even if one tube is broken in rare occasions. Compared to the other passive non pressurized system, you will have pressurized water to provide more comfort for showers.

  • 3-target coating to ensure maximum absorption of sun light;
  • Water in line is pressurized so that there is no need to feed water manually after each use;
  • Does not need to install circulation pump;
  • No electricity needed to operate the system;
  • Water temperature can be heated to 95 °C or more;
  • Capable of supplying enough hot water to families of 4 - 6 people in warm climate;
  • 24 vacuum tubes
  • 250 liter(60 gallon) tank capacity
  • Inner tank material: food grade SUS304/2B stainless steel
  • Outer tank material: painted steel SUS304/2B
  • Vacuum Tubes: 58mmx180mm with AL-N-AL coating
  • Frame: Galvanized Steel
  • Insulation: 50mm (2") polyurethane foaming
  • Seals: silicone rubber polyer
    • We ship to 48 continental states
    • Shipped in boxes in crate to minimize damage to vacuum tubes (total 5 boxes)
    • System weight: 230 lbs
    • Shipping weight: 300 lbs
    • Approximate measurement: 83" x 80" (WxH)
    • Frames for either flat roof or pitched roof installation included
    • 5-year warranty
    For Installation instructions, please refer to this user manual.
